- General Information
- Manufacturer
- ATEN Technology, Inc
- Manufacturer Website Address
- http://www.aten.com
- Brand Name
- ATEN
- Product Line
- CubiQ
- Marketing Information

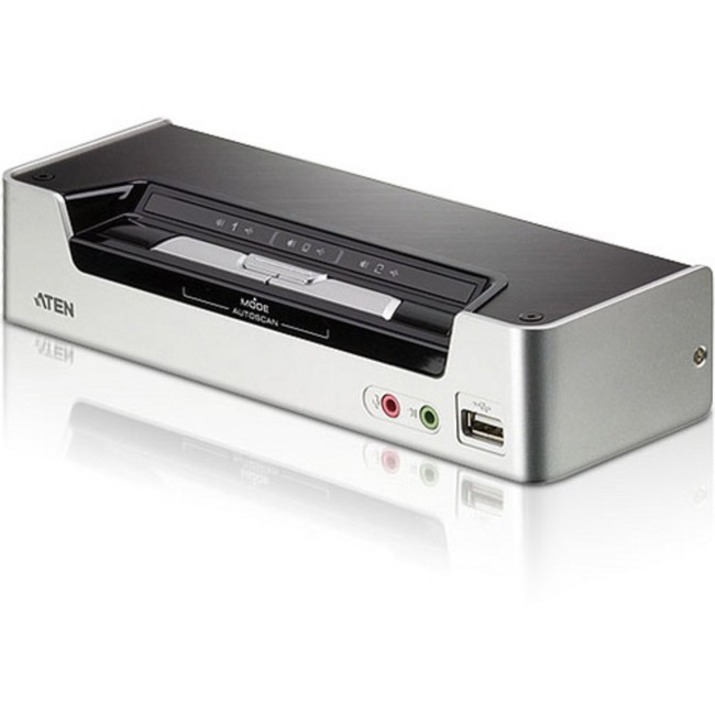

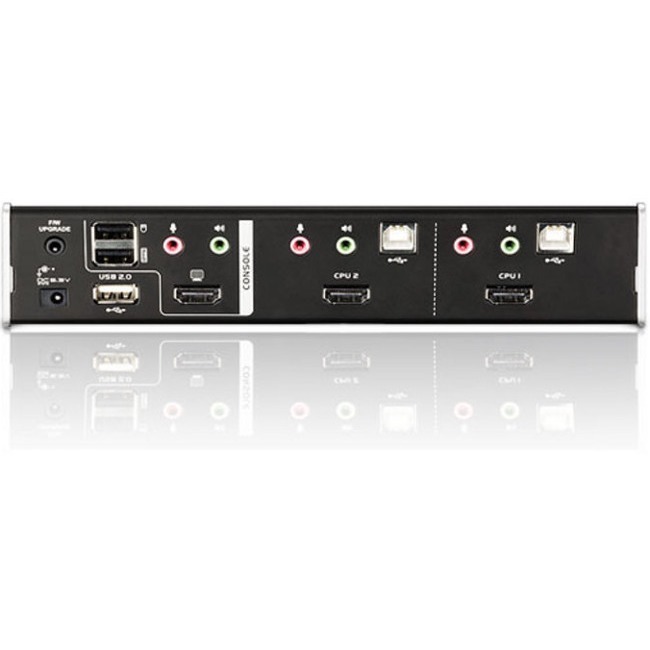

With its unique design and innovative features, the CubiQ™ CS1792 USB 2.0 HDMI KVMP™ Switch provides both style and functionality for today's multimedia SOHO environment. Combining a 2-port switch with a 2-port USB 2.0 hub, the CS1792 provides seamless HDMI signal switching between 2 PCs or other HDMI-enabled devices, such as gaming consoles, and allows users to share USB peripherals from a single console.
The CS1792 provides enhanced independent switching via front panel pushbuttons and keyboard hotkeys, and features Video DynaSync™ technology to ensure that HDMI display resolution is always optimized. With integrated digital audio, the CS1792 also allows users to experience high-definition sound, such as Dolby True HD and DTS HD Master Audio.
Ideal for multimedia applications in the office, the CubiQ™ CS1792 offers the ultimate in space-saving, streamlined KVM technology for the desktop.
- Packaged Quantity
- 1
- Product Type
- KVM Switchbox
- Technical Information
- Number of Computers Supported
- 2
- Number of Local Users Supported
- 1
- Video
- Maximum Video Resolution
- 1920 x 1200
- Interfaces/Ports
- USB
- Yes
- HDMI
- Yes
- Number of USB Ports
- 6
- Number of HDMI Ports
- 3
- Power Description
- Input Voltage
- 5.3 V DC
- Physical Characteristics
- Form Factor
- Desktop
- Height
- 44 mm
- Width
- 72.4 mm
- Depth
- 206.3 mm
- Weight (Approximate)
- 420 g
- Miscellaneous
- Environmentally Friendly
- Yes
