- General Information
- Manufacturer
- ATEN Technology, Inc
- Manufacturer Website Address
- http://www.aten.com
- Brand Name
- ATEN
- Marketing Information

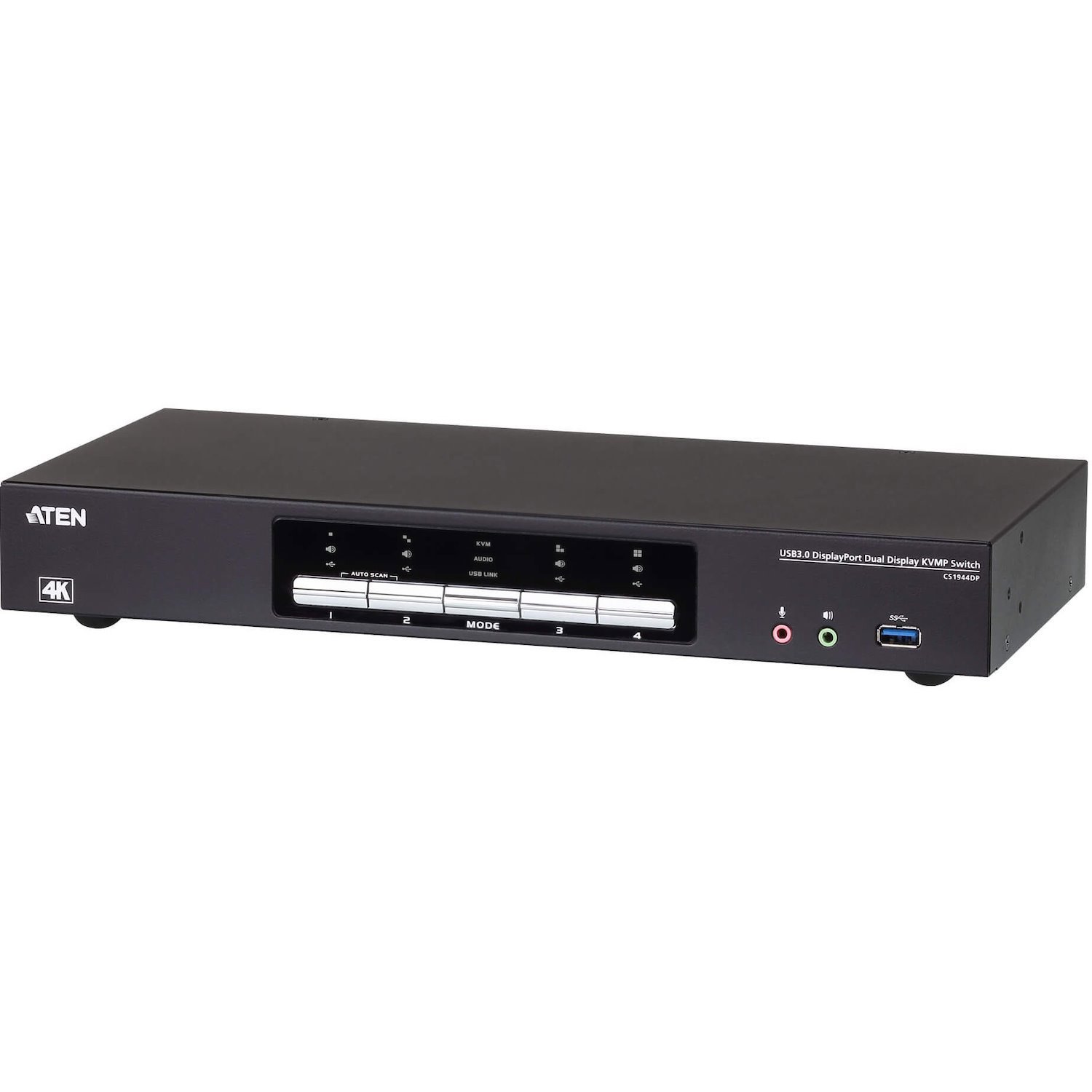

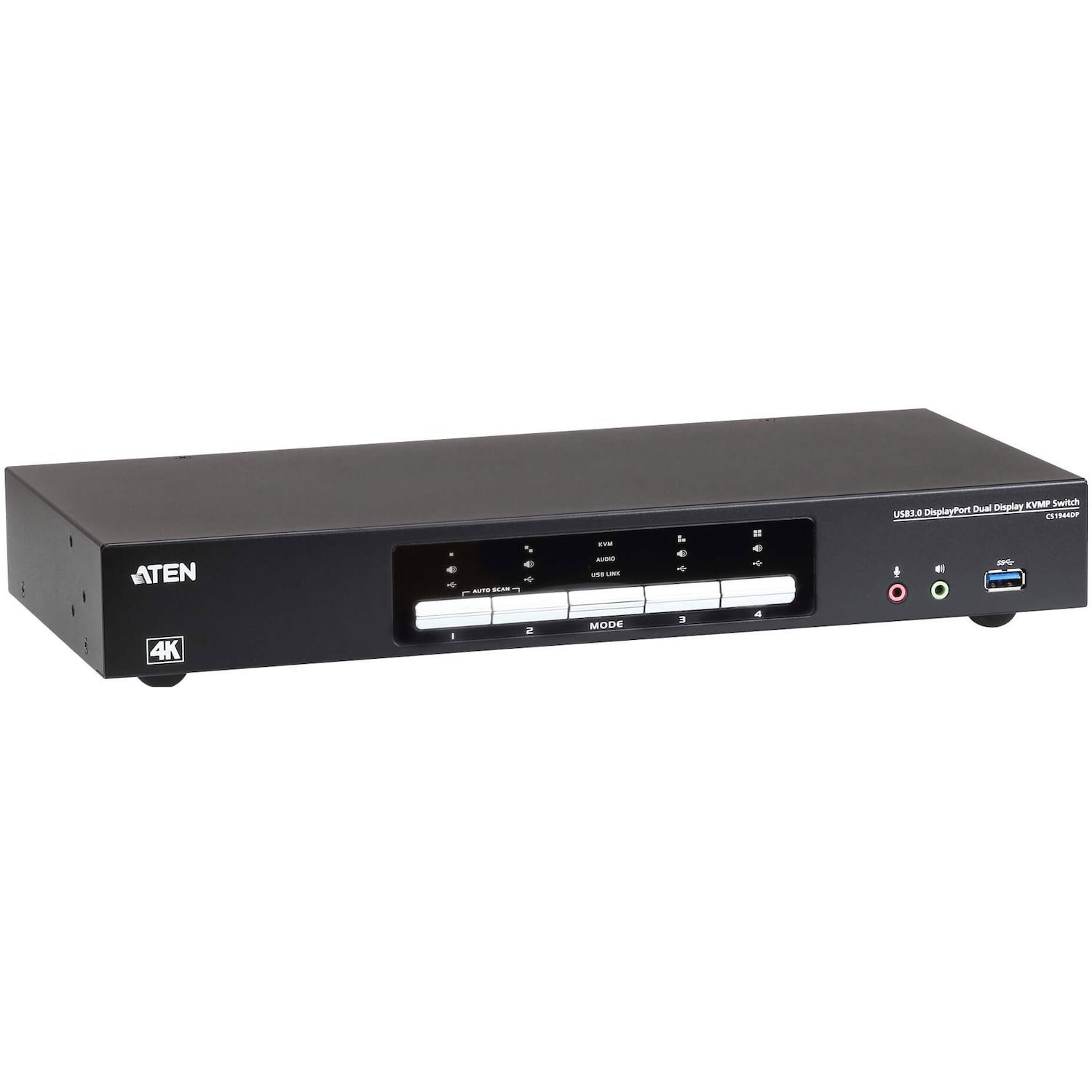

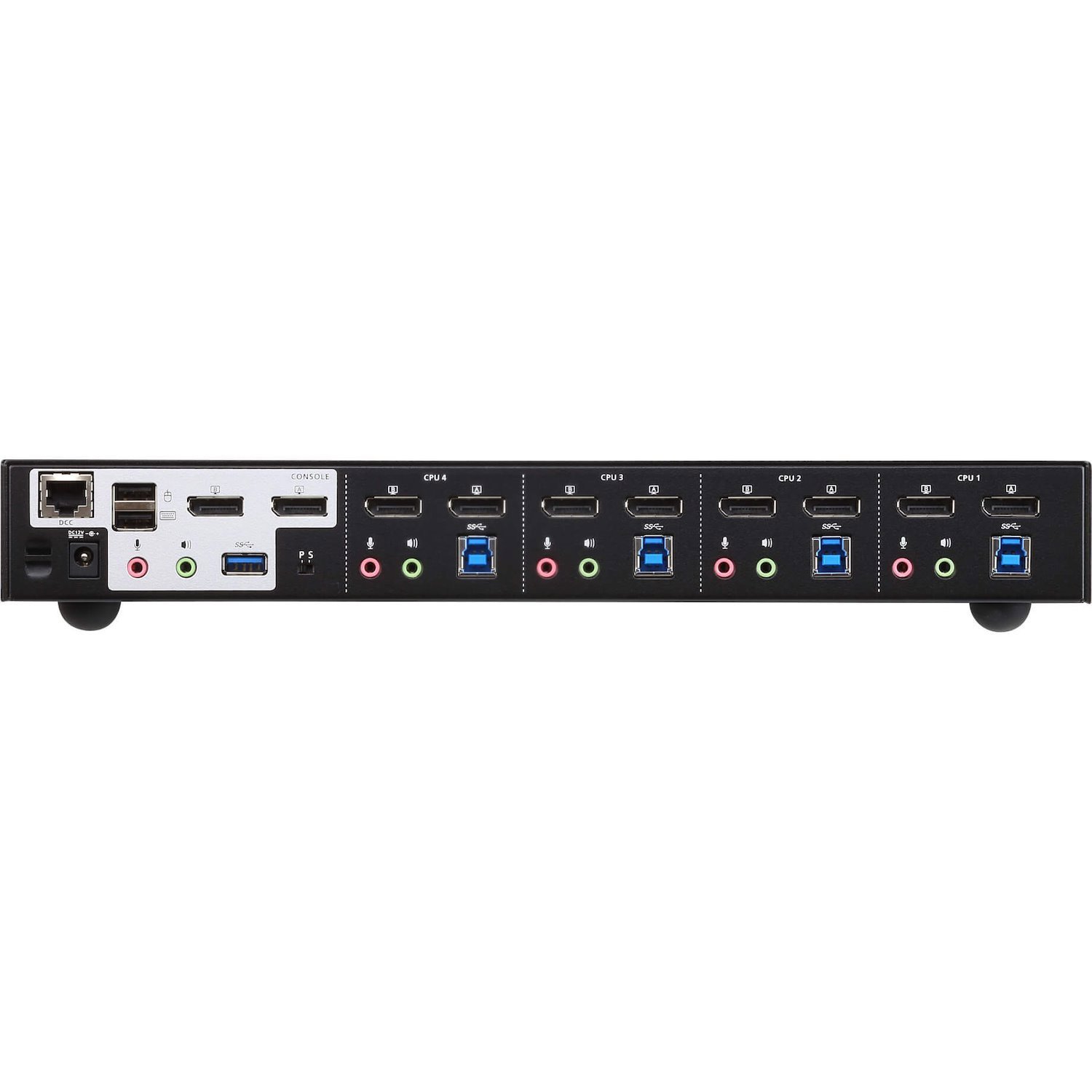

- The ATEN CS1942DP / CS1944DP desktop KVM switch helps organize your desktop. Especially when managing a multimedia workstation at a large organization, CS1942DP / CS1944DP provides you with instant access to two or four computers, all through a single USB keyboard, USB mouse and two DisplayPort monitors.
Advanced video support provides a better-defined DisplayPort connection with video resolutions up to 4K (4096 x 2160 / 3840 x 2160 @ 60 Hz). Incorporating dual display capability, you are allowed to enjoy a wider screen and easily switch between two or four DisplayPort systems. In addition, featuring a built-in USB 3.1 Gen 1 hub, the CS1942DP / CS1944DP delivers unprecedented data transfer rates up to 5 Gbps, allowing you to maximize multimedia operations.
Engineered to meet the ever-increasing demand for dual display, ultra-fast data transmission rates, and lossless 4K video resolution, the CS1942DP / CS1944DP is specifically designed for where multitasking is needed such as design, financial trading, and video post production.
Features
- One USB keyboard and mouse controls two/four DisplayPort computers and share two USB peripherals
- Supports Quad Display by connecting two Dual Display KVM switches
- Supports superior video quality - Up to 4K (4096 x 2160 /3840 x 2160 @ 60 Hz)
- Computer Selection via front panel, hotkeys, mouse, and RS-232 commands
- 2- Port USB 3.1 Gen 1 hub with SuperSpeed 5 Gbps data transfer rates
- Supports DisplayPort Dual-Mode technology (DP++)
- Supports MST (Multi-Stream Transport)
- Supports Console keyboard emulation / bypass feature
- Supports Console mouse emulation / bypass feature
- Independent switching of KVM, USB, and Audio
- Multilingual keyboard mapping - supports English, French, Japanese, and German keyboards
- HDCP Compliant
- Supports HD audio
- Power on detection Firmware upgradable
- Packaged Quantity
- 1
- Product Type
- KVM Switchbox
- Technical Information
- Number of Computers Supported
- 4
- Number of Local Users Supported
- 1
- Features
- LED Indicator
- Video
- Maximum Video Resolution
- 4096 x 2160
- Interfaces/Ports
- Network (RJ-45)
- Yes
- USB
- Yes
- DisplayPort
- Yes
- Number of Network (RJ-45) Ports
- 1
- Number of USB Ports
- 8
- Number of DisplayPorts
- 10
- Environmental Conditions
- Minimum Operating Temperature
- 0°C
- Maximum Operating Temperature
- 50°C
- Physical Characteristics
- Form Factor
- Desktop
- Height
- 44 mm
- Width
- 156.6 mm
- Depth
- 335 mm
- Weight (Approximate)
- 1.51 kg
- Miscellaneous

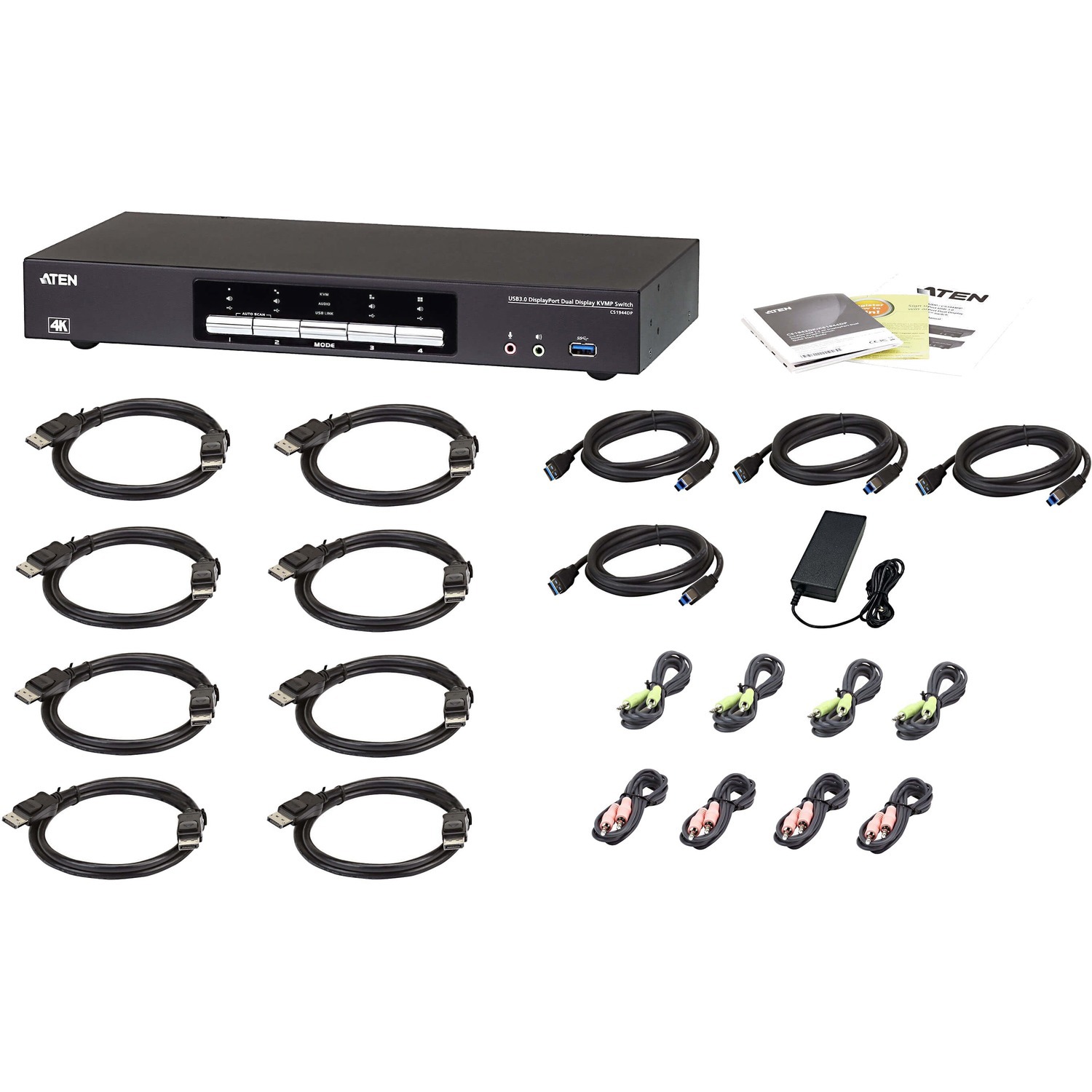

- Package Contents
- CS1944DP KVM Switchbox
- 8 x DisplayPort 1.2 Cables
- 4 x USB 3.0 Cables
- 8 x Audio Cables
- 1 x Power Adapter
- 1 x Instruction Manual
