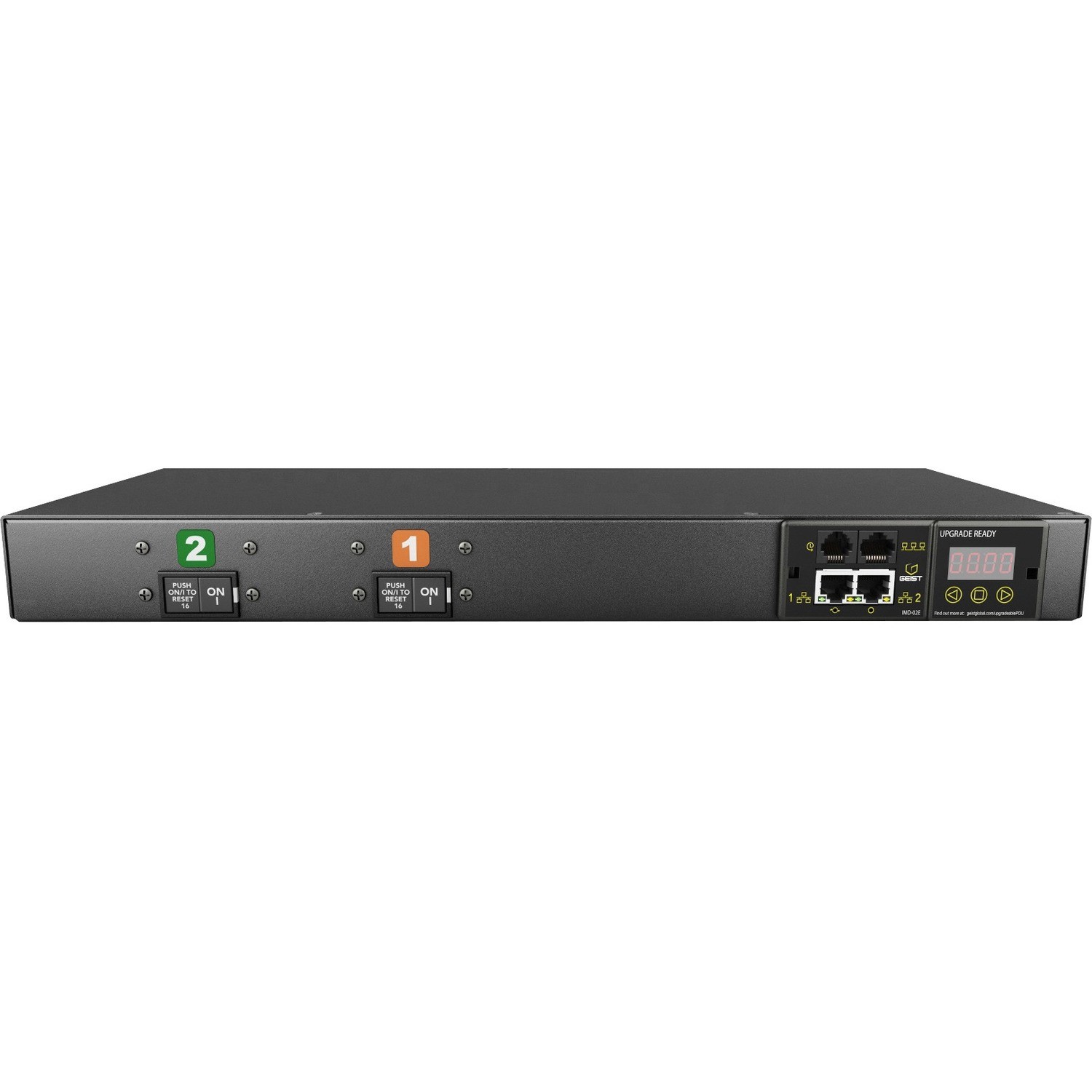

Vertiv Geist MG03E1R1-08P443-3PS6B2H10-S PDU

  • Part: 1016527
kr11,869.00

Availability

Out of Stock

  • General Information
    • Manufacturer
    • Vertiv
    • Manufacturer Website Address
    • http://www.vertivco.com
    • Brand Name
    • Vertiv Geist
    • Product Series
    • rPDU
    • Marketing Information
    • Upgradeable Unit Level EC Monitored rPDUs provide reliable power distribution to critical IT equipment while delivering a comprehensive view of input level power usage via remote network access. Includes environmental monitoring capabilities to obtain real-time environmental metrics. Upgrade the hot-swappable monitoring device on select units to leverage new technologies and accommodate changing business needs.

      Benefits

      • Reliable power distribution with local and remote power monitoring options offer quick access to critical power usage information to evaluate energy usage trends and maximize uptime.
      • Environmental monitoring capabilities with the addition of optional environmental sensors ensure users have critical infrastructure data at their fingertips to prevent climate-related equipment failure and system downtime.
      • Gather comprehensive power data at the palm of your hand with the use of the Vertiv VLC mobile app.
      • Fault-Tolerant Daisy Chaining with RSTP simplifies intelligent rPDU connectivity and ensures data is reported even when a break in the network chain occurs. Supports up to 40 rPDUs.
      • Every unit is 100% tested for reliability and functionality.
    • Product Type
    • PDU

  • Technical Information
    • PDU Type
    • Monitored
    • Plug/Connector Type
    • 2P+E (IP44)
    • Plug/Connector Detail
    • 1 x 2P+E (IP44)
    • Receptacle Type
    • U-Lock IEC 60320 C13
    • U-Lock IEC 60320 C19
    • Receptacle Detail

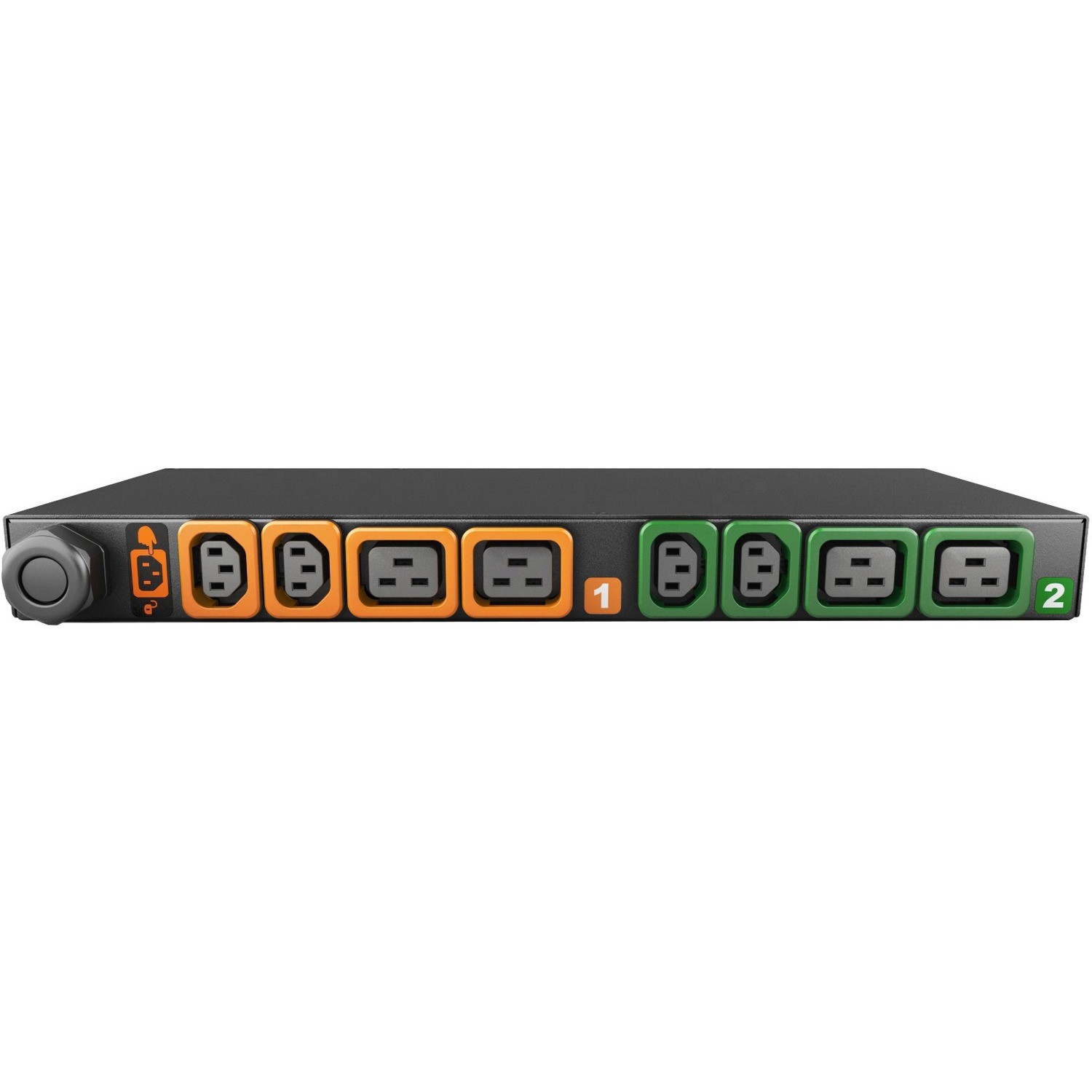

    • 4 x U-Lock IEC 60320 C13
    • 4 x U-Lock IEC 60320 C19
    • Protection Type
    • Overcurrent Protection
    • Single Pole
  • Power Description
    • Input Voltage
    • 230 V AC
    • Input Voltage Range
    • 200 V AC - 240 V AC
    • Output Voltage
    • 230 V AC
    • Power Rating (Watt)
    • 7.30 kW
    • Input Current
    • 32 A
  • Management
    • Management
    • Protocols:
      • DHCP
      • HTTP
      • HTTPS
      • IPv4
      • IPv6
      • LDAP
      • NTP
      • RADIUS
      • RSTP
      • SSH
      • SMTP
      • SNMP (v1/v2c/v3)
      • Syslog
      • TACACS+
  • Interfaces/Ports
    • Network (RJ-45)
    • Yes
  • Physical Characteristics
    • Mounting Orientation
    • Horizontal
    • Mount Type
    • Rack-mountable
    • Rack Height
    • 1U
    • Height
    • 44 mm
    • Width
    • 432 mm
    • Depth
    • 216 mm
  • Miscellaneous
    • Environmentally Friendly
    • Yes
    • Environmental Compliance
    • Restriction of Hazardous Substances (RoHS)
    • China Restriction of Hazardous Substances (China RoHS)
