- General Information
- Manufacturer
- Noctua
- Manufacturer Website Address
- http://www.noctua.at
- Brand Name
- Noctua
- Product Line
- redux
- Marketing Information

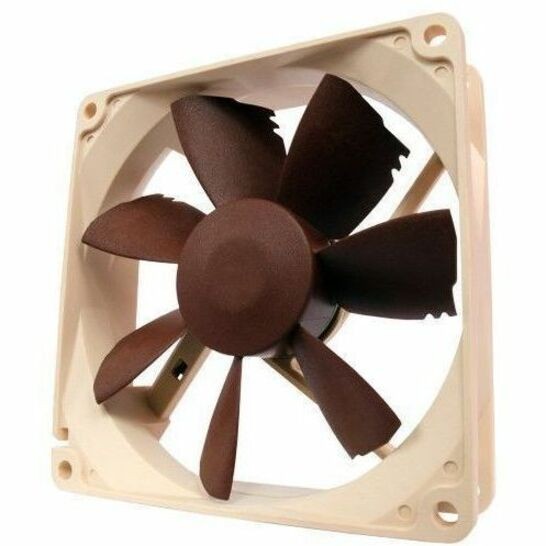

The classic NF-B9 is a long-standing favourite among enthusiast users around the world and helped to found Noctua's reputation as a top-tier manufacturer of premium quality quiet cooling components. The new redux edition reissues this award-winning model in a streamlined, accessibly priced package that has been reduced to the essential core: the NF-B9 premium fan. Its industry grade SSO-Bearing, over 150,000 hours MTTF rating and full 6 years manufacturer's warranty make the NF-B9 redux a proven premium choice that provides trusted Noctua quality at an attractive price point. The 1600rpm PWM version features Noctua's proprietary NE-FD1 PWM IC for automatic speed control, which allows to strike a perfect balance between high cooling capacity and low noise operation in each given situation.
- Product Type
- Cooling Fan
- Fan Information
- Number of Fans
- 1
- Fan Bearing Type
- SSO Bearing
- Fan Speed (Min)
- 350 rpm
- Fan Speed (Max)
- 1600 rpm
- Maximum Airflow
- 64.30m³/h
- Noise Levels (A-Weighted)
- 17.6 dB(A)
- Fan Life
- 17.1 Year
- Maximum Air Pressure
- 1.61mmH2O
- Interfaces/Ports
- Connectors
- 4-pin PWM
- Physical Characteristics
- Maximum Fan Diameter
- 92 mm
- Fan Height
- 92 mm
- Fan Width
- 92 mm
- Fan Depth
- 25 mm
