- General Information
- Manufacturer
- Epson Corporation
- Manufacturer Website Address
- http://www.epson.co.uk
- Brand Name
- Epson
- Marketing Information

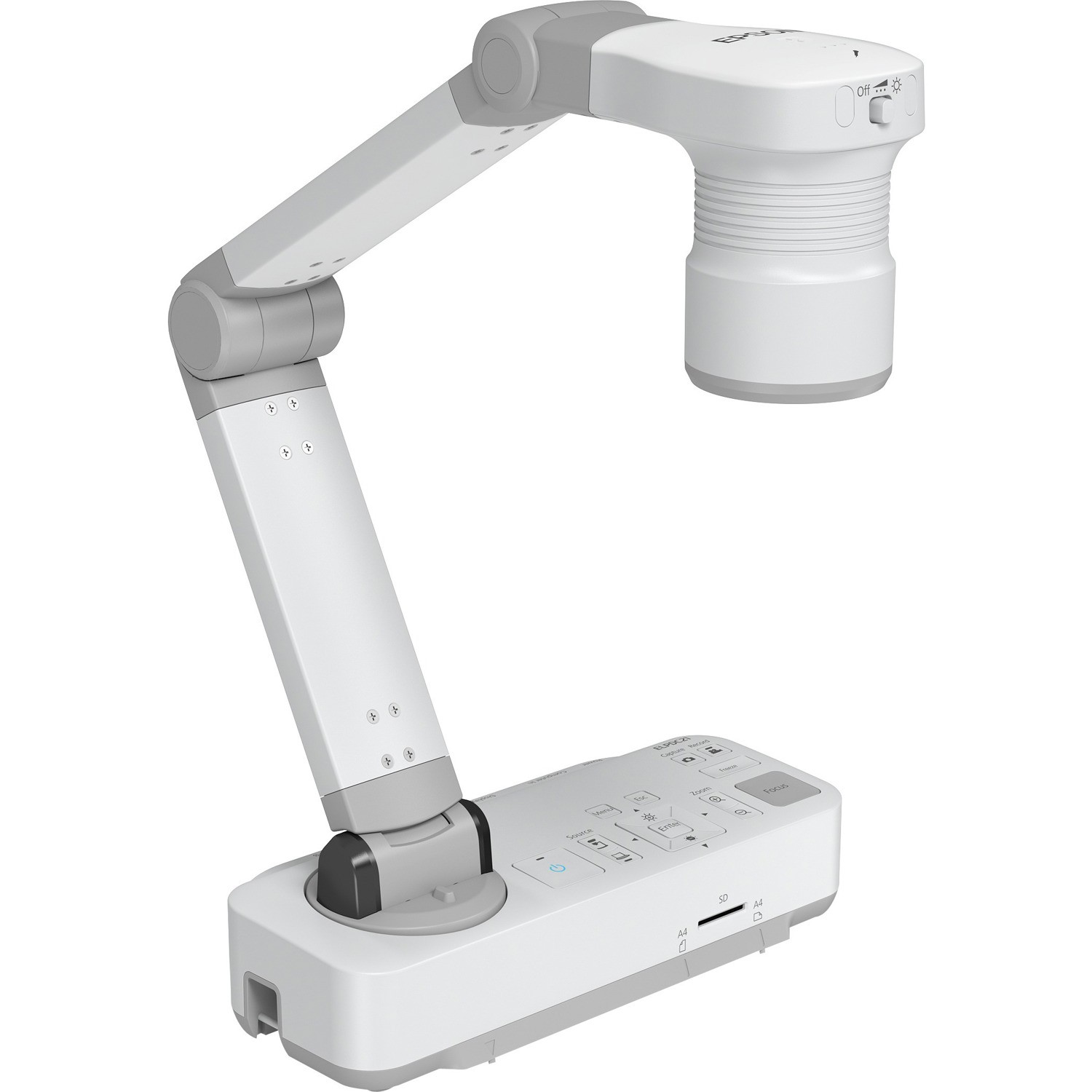

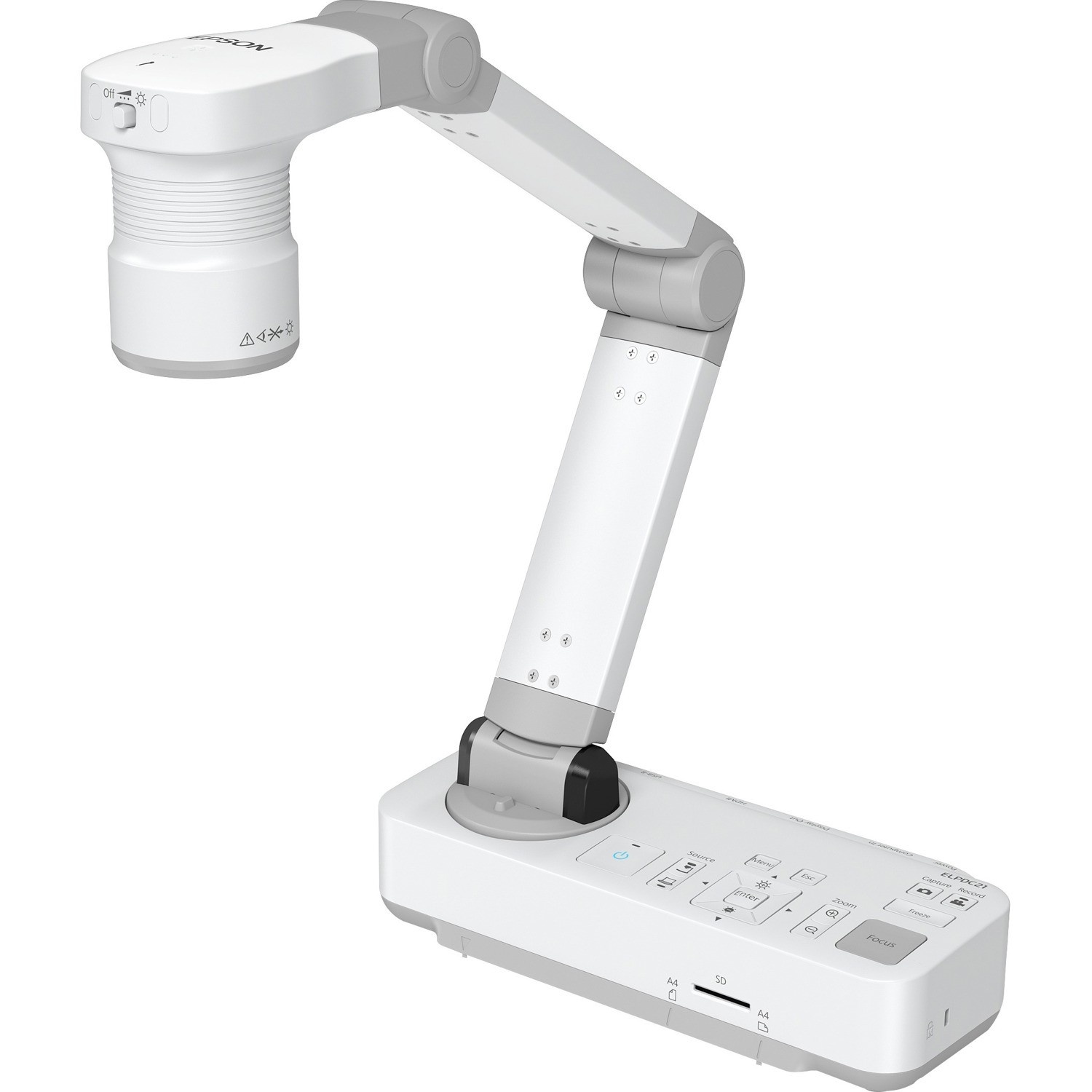

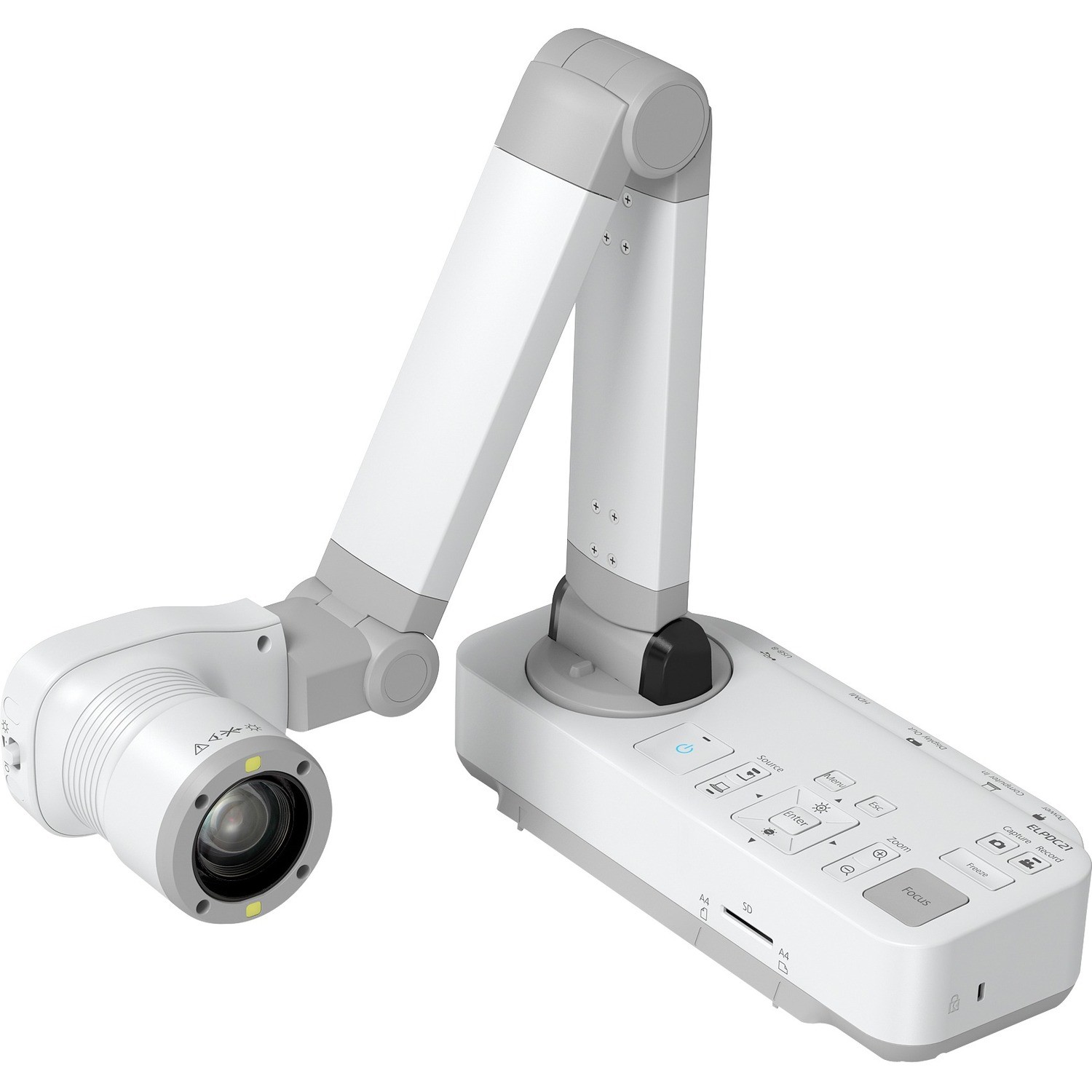

- Bring lessons to life with this user-friendly document camera and share pictures and objects in Full HD on a large screen for the benefit of the whole class. Bursting with a range of clever features and functionality, teachers can create a dynamic environment to enhance student learning. Benefitting from a lightweight and portable design, it is easy to transport between classrooms.
Highlight the finest detail
This document camera is ideal when clear magnification is required, for example when studying historical texts. A 12x optical zoom plus 10x digital zoom and built-in LED light will ensure even intricate detail can be seen. Ideal for science lessons, minute objects can be displayed on a large screen thanks to a microscope attachment.
Display in Full HD
Display images and 3D objects in Full HD with incredible detail for the whole class to see. Thanks to a large A3 shooting area, two full pages from a textbook can be displayed. Smooth video streaming is achieved with impressive clarity and without motion blur at 30 frames per second.
Added flexibility
Live images and video content, including that stored on a SD card, can be output to multiple displays thanks to parallel video output. Thanks to split-screen functionality, teachers can present two pieces of content side-by-side to help highlight teaching points, such as plant and animal growth. Teachers can maintain student engagement by operating the document camera directly from the projected image at the front of the classroom, including starting and stopping video recordings.
Portable and lightweight
A lightweight and portable design and included soft carry case makes it easy to move between classrooms. With a Kensington lock and security bar, schools and education establishments can have added peace of mind when the camera is unattended or not in use.
- Product Type
- Document Camera
- Warranty
- Limited Warranty
- 36 Month
- Technical Information
- Image Sensor Size
- 9.40 mm
- Image Sensor Type
- CMOS
- Maximum Image Resolution
- 1920 x 1080
- Video Signals
- VGA
- USB (UVC)
- Optical Zoom
- 12x
- Digital Zoom
- 10x
- Maximum Frame Rate
- 30 fps
- Platform Supported
- PC
- Mac
- Storage
- Memory Card Supported
- SD
- Interfaces/Ports
- USB
- Yes
- HDMI
- Yes
- VGA In
- Yes
- VGA Out
- Yes
- Physical Characteristics
- Height
- 447 mm
- Width
- 270 mm
- Depth
- 317 mm
- Weight (Approximate)
- 2.60 kg
- Miscellaneous
- Package Contents
- ELP-DC21 Education Document Camera
- power adapter
- CD manual
- Transport bag
- HDMI Cable 1.8m
- Microscope adapter
- Power cable
- Quick setup guide
- Remote control including batteries
- Software (CD)
- USB Cable
- Additional Information
- Shooting Area A3 sized: 297 x 420 mm
- Frame Rate: Max. 30 fps
- Effective Pixels: 1920 Horizontal x 1080 Vertical
- Resolution Output: SXGA(1280*1024)/XGA(1024*768)/WXGA 16:10 (1280*800)/WXGA 16:9 (1360*768)/1080p (1920*1080), 480p/ 720p/ 1080p
- Image Adjustments: Auto Exposure, Black and White, Brightness Adjustment, Contrast Adjustement, Image Rotation, Microscope mode
- PC-Free ImageViewer: View images from internal or supported external memory
- Image Storage:SD/SDHC compatibility (128MB-32GB)
- Features:Auto focus, Freeze, Parallel video output, SD card viewer, Split screen, Zoom
- Security:Kensington lock, Security bar, Security cable hole
- System Requirements
- Mac OS 10.7.x
- Mac OS 10.8.x
- Mac OS 10.9.x
- Mac OS X
- Windows 10
- Windows 7
- Windows 8
- Windows 8.1
- Windows Vista
