- General Information
- Manufacturer
- Dell Technologies
- Manufacturer Website Address
- http://www.dell.co.uk
- Brand Name
- Dell
- Marketing Information
Highlights
- Support for Message Signal Interrupts extended (MSI-X), improves host utilization and enhances application performance
- Support for 8GFC, 4GFC and 2GFC devices
- It has comprehensive virtualization capabilities with support for N Port ID Virtualization (NPIV) and Virtual Fabric
- Host to Fabric FC-SP authentication
- Long wave optical transceiver model available allows the board to transmit signal over long distances
- Provides BlockGuard ready-end-to-end data integrity for protection against silent data corruption events
- Common driver model allows a single driver to support all Emulex HBAs on a given OS
- Offers easy deployment of new firmware with minimal server reboots
- Efficient centralized administration of Emulex HBAs via powerful management tools
- PCIe 2.0 bus compliant, with PCIe 1.0 backward compatibility supported
Overview

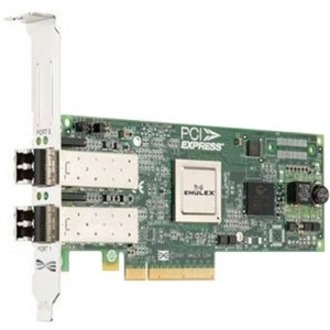

The Emulex LPE 12002, Dual Port 8Gb Host Bus Adapter from Dell™ offers an exceptional performance and advanced management functionality that can shave days off installing and managing adapters. It is coupled with up to better IOPS performance per watt, which makes Dell 8GB Fibre Channel (8GFC) host bus adapters the clear choice for the toughest virtualized, cloud and mission critical deployments.
- Product Type
- Fibre Channel Host Bus Adapter
- Warranty
- Additional Warranty Information
- Technical Information
- Total Number of Fibre Channel Ports
- 2
- Number of LC Ports
- 2
- Host Interface
- PCI Express 2.0 x8
- Media & Performance
- Media Type Supported
- Optical Fiber
- Fiber Mode Supported
- Multi-mode
- Data Transfer Rate
- 8 Gbit/s
- Physical Characteristics
- Form Factor
- Plug-in Card
- Card Height
- Low-profile
- Height
- 68.6 mm
- Depth
- 167.6 mm
- Miscellaneous
- Compatibility
- Dell Systems:
- PowerEdge R320
- PowerEdge R330
- PowerEdge R410
- PowerEdge R415
- PowerEdge R420
- PowerEdge R430
- PowerEdge R440
- PowerEdge R510
- PowerEdge R515
- PowerEdge R520
- PowerEdge R530
- PowerEdge R540
- PowerEdge R610
- PowerEdge R620
- PowerEdge R630
- PowerEdge R640
- PowerEdge R710
- PowerEdge R715
- PowerEdge R720
- PowerEdge R720XD
- PowerEdge R730
- PowerEdge R730XD
- PowerEdge R740
- PowerEdge R740XD
- PowerEdge R805
- PowerEdge R810
- PowerEdge R815
- PowerEdge R820
- PowerEdge R900
- PowerEdge R905
- PowerEdge R910
- PowerEdge R920
- PowerEdge R940
- PowerEdge T320
- PowerEdge T330
- PowerEdge T410
- PowerEdge T420
- PowerEdge T430
- PowerEdge T440
- PowerEdge T610
- PowerEdge T620
- PowerEdge T630
- PowerEdge T640
- PowerEdge T710
- PowerEdge VRTX
- PowerVault DL2000
- PowerVault NX3200
- Certifications & Standards
- CISPR 22 Class A
- DHHS
- EN55022 Class A
- EMC
- ICES-003 Class A
- UL 60950-1
- EN 60950-1
- CSA C22.2 No. 60950-1-03
- FCC Part 15 A
- EN 60825-1
- EN55024 Class A
- BSMI Class A
- VCCI Class A
- Environmentally Friendly
- Yes
