- General Information
- Manufacturer
- ATEN Technology, Inc
- Manufacturer Website Address
- http://www.aten.com
- Brand Name
- VanCryst
- Marketing Information

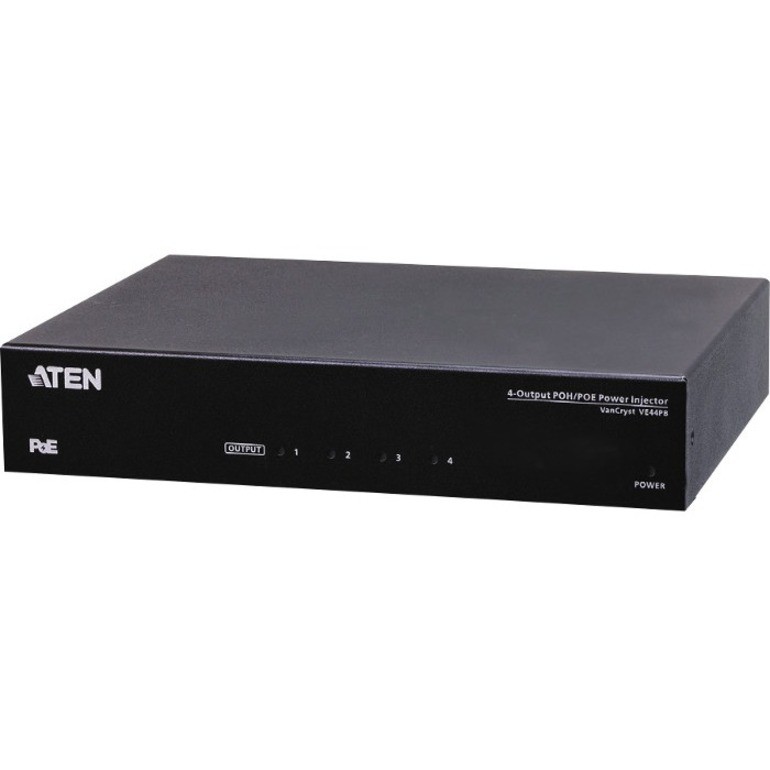

- The ATEN VE44PB is a 4-port power injector for remote power supply for up to four compatible ATEN PoH-powered or PoE-powered devices via Cat 5e/6/6a cables. Deploying the VE44PB in your Pro AV facilities eliminates the need for local power supplies of the connected devices. It supplies up to 15.4W of power per PSE port. Featuring HDBaseT connectivity, the VE44PB can extend HDMI connection over a long distance via Cat 6/6a cables; meanwhile, still ensures unaffected video and image quality. Besides, the status LEDs on its front panel indicates an at-a-glance overview of the connected devices, allowing you to perform real-time monitoring and trouble shooting in the case of emergency. With its compact and rack mountable design, the VE44PB can be fl exibly installed anywhere between the transmitter and receiver that require remote PoH / PoE powering.
- Product Type
- PoE Injector
- Technical Information
- Protection Type
- ESD Protection
- Power Description
- Input Voltage
- 120 V AC
- 230 V AC
- Minimum Frequency
- 50 Hz
- Maximum Frequency
- 60 Hz
- Interfaces/Ports
- Input Ports
- 4 x Ethernet
- Output Ports
- 4 x PoE
- Physical Characteristics
- Form Factor
- Rack Mountable
- Height
- 41.8 mm
- Width
- 161.2 mm
- Length
- 215 mm
- Weight (Approximate)
- 1.23 kg
- Miscellaneous
- Additional Information
- Operating Temperature : 0 - 40°C
Storage Temperature : -20 - 60°C
Humidity : 0 - 80% RH, Non-Condensing
Power Consumption : AC110V:1.2W; AC220V:1.1W
