- General Information
- Manufacturer
- ATEN Technology, Inc
- Manufacturer Website Address
- http://www.aten.com
- Brand Name
- ATEN
- Marketing Information

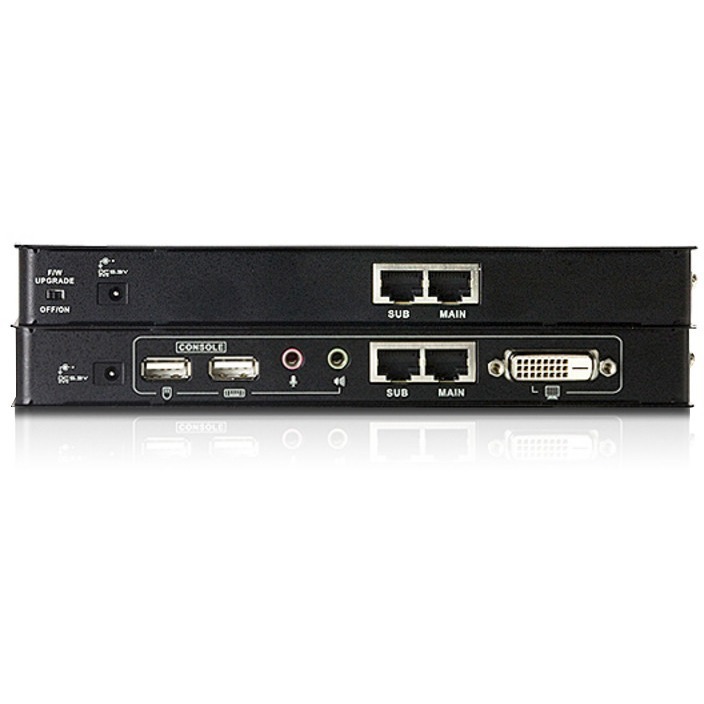

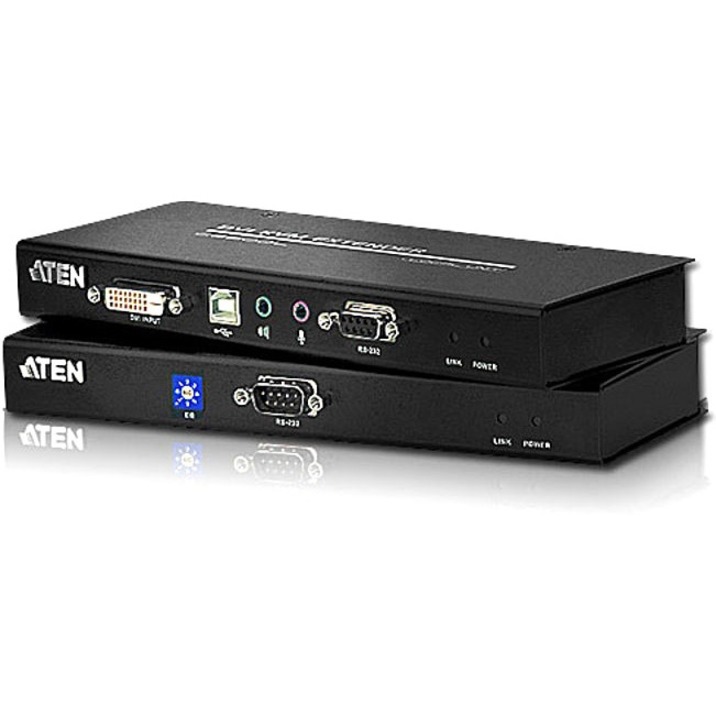

The CE600 is a DVI and USB based KVM Extender with RS-232 serial functionality. It allows access to a computer system from a remote console (USB keyboard, monitor, and mouse). Because it allows access to a computer system from a remote console, the CE600 is perfect for use in any type of installation where you need to place the console where it is conveniently accessible, but you want the system equipment to reside in a safe location - away from the dust and dirt of the factory floor, or the harsh environmental infl uence of a construction site, for example. This allows users to deploy system equipment over large distances.
The CE600 users one Cat 5e cable (DVI Single Link) to support up to 1920 x 1200 video resolution
- Product Type
- KVM Console/Extender
- Technical Information
- Connectivity Technology
- Wired
- Number of Computers Supported
- 1
- Number of Remote Users Supported
- 1
- Maximum Operating Distance
- 60 m
- Video
- Graphic Mode
- WUXGA
- Maximum Video Resolution
- 1920 x 1200
- Interfaces/Ports
- Network (RJ-45)
- Yes
- USB
- Yes
- DVI
- Yes
- Number of Network (RJ-45) Ports
- 4
- Number of USB Ports
- 3
- Number of DVI Ports
- 2
- Power Description
- Input Voltage
- 5.3 V DC
- Physical Characteristics
- Form Factor
- Rack-mountable
- Transmitter Height
- 25 mm
- Transmitter Width
- 85.40 mm
- Transmitter Depth
- 202 mm
- Receiver Height
- 25 mm
- Receiver Width
- 85 mm
- Receiver Depth
- 202 mm
- Transmitter Weight (Approximate)
- 480 g
- Receiver Weight (Approximate)
- 480 g
- Miscellaneous
- Platform Supported
- PC
- Environmentally Friendly
- Yes
