- General Information
- Manufacturer
- ATEN Technology, Inc
- Manufacturer Website Address
- http://www.aten.com
- Brand Name
- ATEN
- Product Line
- VanCryst
- Marketing Information

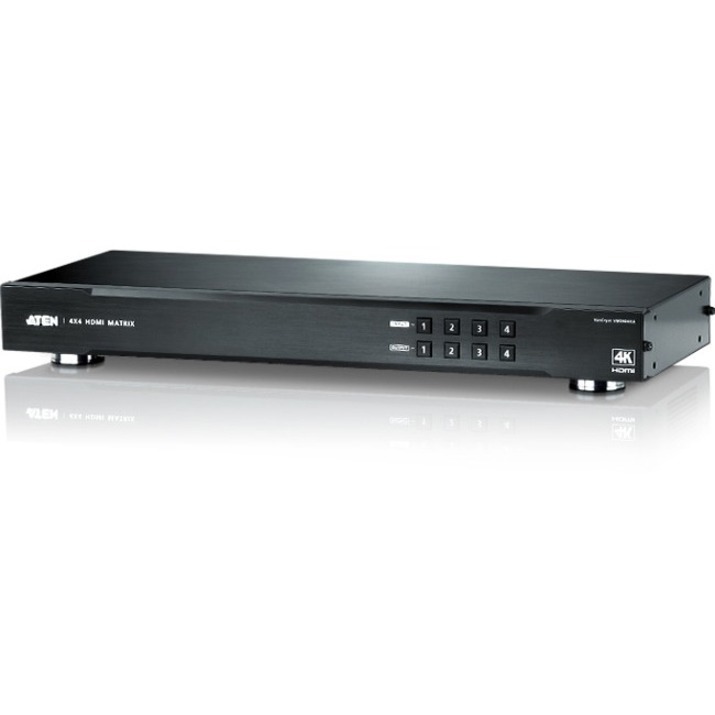

The ATEN VM0404HA 4x4 4K HDMI Matrix Switch supports 4K resolutions of UHD (3840 x 2160) and DCI (4096 x 2160) with refresh rates of 30 Hz (4:4:4) and 60 Hz (4:2:0). Ready for the future of highdefinition video switching, the VM0404HA is ideal for applications where the routing of 4K digital signals is required, such as in classrooms, auditoriums, department stores and more.
The VM0404HA matrix switch offers an easy and affordable way to route any of 4 HDMI video sources to any of 4 HDMI displays and can be operated through front-panel pushbuttons, IR remote and RS-232 control, ensuring optimum viewing and control of high-definition video.
- Packaged Quantity
- 1
- Product Type
- Audio/Video Switchbox
- Technical Information
- Connectivity Technology
- Cable
- Number of Input Devices Supported
- 4
- Device Supported
- Display
- Computer
- Number of Displays Supported
- 4
- Video
- Graphics Modes
- 4K
- Maximum Video Resolution
- 4096 x 2160
- Interfaces/Ports
- HDMI In
- Yes
- HDMI Out
- Yes
- Number of USB Ports
- 1
- Number of HDMI Inputs
- 4
- Number of HDMI Outputs
- 4
- Media & Performance
- Maximum Operating Distance
- 15 m
- Physical Characteristics
- Form Factor
- Rack-mountable
- Height
- 43.9 mm
- Width
- 162.8 mm
- Depth
- 437.1 mm
- Weight (Approximate)
- 2.02 kg
- Miscellaneous
- Environmentally Friendly
- Yes
