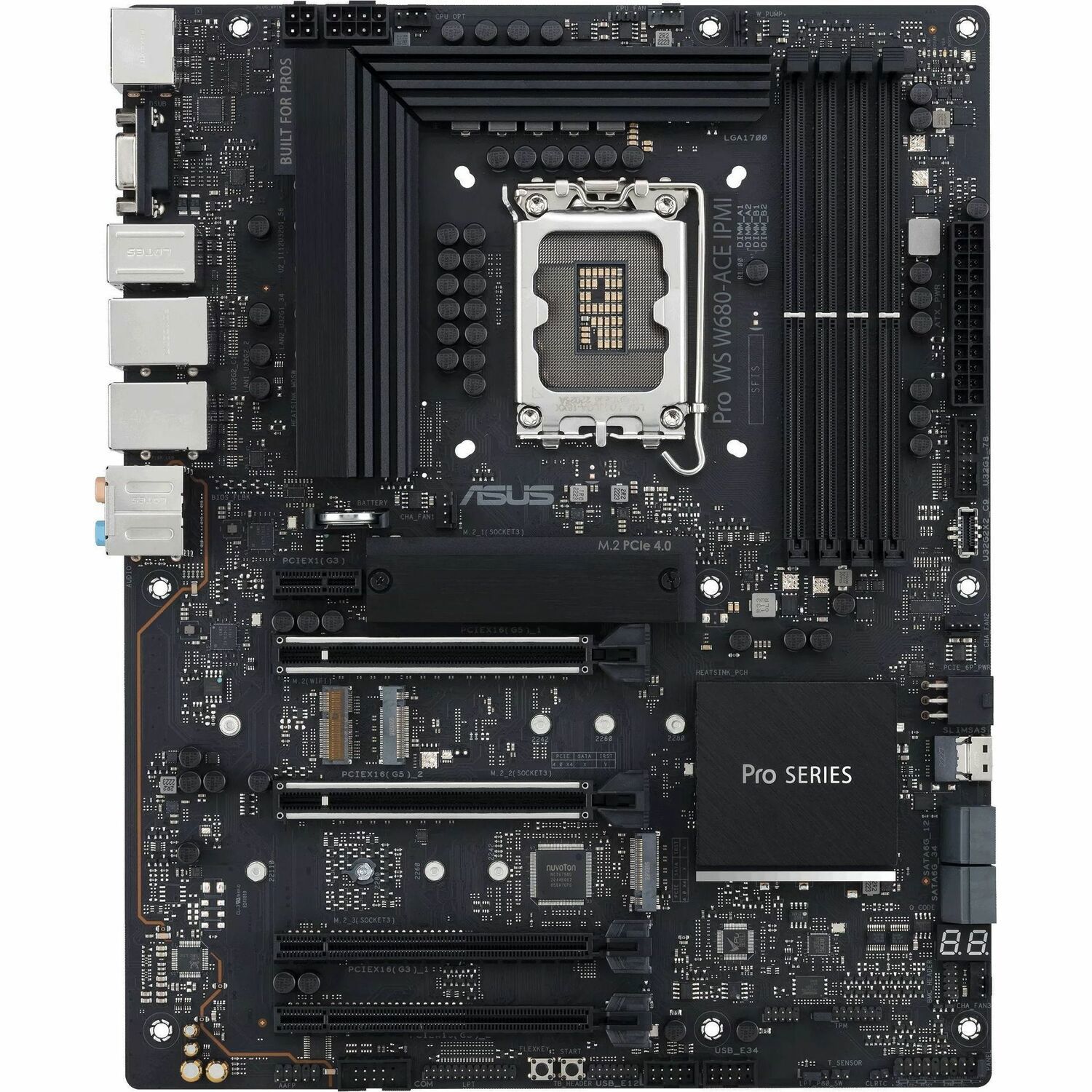

Asus Pro WS W680-ACE IPMI Workstation Motherboard - Intel W680 Chipset - Socket LGA-1700 - Intel Optane Memory Ready - ATX

  • Part: 1054495
kr6,249.00

Availability

Out of Stock
  • General Information
    • Manufacturer
    • ASUS Computer International
    • Manufacturer Website Address
    • http://uk.asus.com
    • Brand Name
    • Asus
    • Product Line
    • Pro
    • Marketing Information

    • Intel®W680 (LGA 1700) ATX motherboard, PCIe® 5.0, DDR5, IPMI expansion card, dual Intel®2.5 Gb Ethernet, PCIe 4.0 M.2, USB 3.2 Gen 2x2 front panel connector, SlimSAS, SATA 6 Gbps, HDMI®, DisplayPort and VGA

      • Ready for Advanced AI PC:Designed for the future of AI computing, with the power and connectivity needed for demanding AI applications
      • Intel®LGA 1700 socket:Ready for 14th, 13thand 12thGen Intel®Core™ Processors
      • Bundle with IPMI expansion card:Equips with a dedicated Ethernet controller to BMC chip to provide the intelligence for its IPMI architecture
      • Enhanced power solution:DrMOS, ProCool connector, alloy chokes and durable capacitors for stable power delivery
      • Next-gen connectivity:Dual PCIe 5.0 SafeSlots, dual PCIe 3.0 slots, 3 x M.2 PCIe 4.0, SlimSAS, dual Intel®2.5Gb Ethernet, front panel USB 3.2 Gen2x2 Type-C®, Thunderbolt™ 4 header support, TPM header, LPT header
      • Comprehensive cooling:Large VRM heatsink, M.2 heatsinks, hybrid fan headers and Fan Xpert 4
      • Advanced security management:USB port management, software blacklisting and Regedit on/off controls via ASUS Control Center Express
      • Trusted stability:Tested for 24/7 operation, validated for extensive compatibility and equipped with SafeSlot and SafeDIMM for enhanced durability


      Pro WORKSTATION MOTHERBOARD

      ASUS Pro Workstation motherboards are designed for professionals in AI training, deep learning, animation, 3D rendering or media production. Featuring expandable graphics, extensive storage, impressive connectivity and exceptional overall performance and reliability, Pro Workstation motherboards are the ideal solution for creative professionals. Each motherboard includes centralized management software, so they're also an efficient and cost-effective option for IT administrators.

      Ultra Powerful Back IO

      The motherboard comes with four USB 3.2 Gen 1 type connector, one reversible USB Type-C connector and front-panel connector to support additional USB expansions.

      ECC Memory Support

      Designed for creative professionals who require outstanding performance, reliability and enhanced security, ASUS Pro WS W680-ACE motherboard is powered by the 14th, 13th and 12th Gen Intel®Core™ processors for always-on usage scenarios and supports ECC memory to automatically detect and correct data corruption, reducing the chance of system crashes to ensure workstation stability.

    • Product Type
    • Workstation Motherboard

  • Technical Information
    • AI-powered
    • Yes
  • Processor & Chipset
    • Chipset Manufacturer
    • Intel
    • Chipset Model
    • W680
    • Processor Socket
    • Socket LGA-1700
    • Processor Generation Supported
    • 13th Gen
    • 12th Gen
    • 14th Gen
    • Processor Supported
    • Celeron
    • Pentium Gold
    • Core
  • Memory
    • Number of Memory Slots
    • 4
    • Memory Form Factor
    • DIMM
    • UDIMM
    • Maximum Memory Supported
    • 192 GB
    • Memory Technology
    • DDR5 SDRAM
    • Memory Speed Supported
    • 6000 MHz
    • Intel Optane Memory Ready
    • Yes
    • Error Checking
    • ECC
  • I/O Controller
    • Controller Type
    • Serial ATA/600
    • RAID Supported
    • Yes
    • RAID Levels
    • 0
    • 1
    • 5
    • 10
  • Video
    • Onboard Video
    • CPU Dependent Video
  • Audio
    • Audio Channels
    • 7.1
  • Network & Communication
    • Bluetooth
    • Yes
    • Gigabit Ethernet
    • Yes
    • 2.5Gigabit Ethernet
    • Yes
    • Wireless LAN
    • Yes
  • I/O Expansions
    • Total Number of Expansion Slots
    • 5
    • PCI Express Standard
    • PCI Express 5.0
    • PCI Express 3.0
    • Total Number of PCI Express Slots
    • 5
    • Number of PCI Express x1 Slots
    • 1
    • Number of PCI Express x16 Slots
    • 4
  • Interfaces/Ports
    • Total Number of USB Ports
    • 8
    • Number of USB 3.2 Gen 1 Type-A Ports
    • 4
    • Number of USB 3.2 Gen 2 Type-A Ports
    • 1
    • Number of USB 3.2 Gen 2 Type-C Ports
    • 1
    • VGA
    • Yes
    • HDMI
    • Yes
    • HDMI Version
      • 2.1
    • DisplayPort
    • Yes
    • Number of Network (RJ-45) Ports
    • 2
    • Thunderbolt
    • Yes
  • Onboard Interfaces
    • Number of SATA Interfaces
    • 8
    • Number of M.2 Interfaces
    • 3
    • Total Number of Onboard USB Ports
    • 7
    • Number of Onboard USB 2.0 Ports
    • 4
  • Physical Characteristics
    • Form Factor
    • ATX
    • Width
    • 304.8 mm
    • Depth
    • 243.8 mm
  • Miscellaneous
    • Package Contents
      • Pro WS W680-ACE IPMI Workstation Motherboard
      • 2 x SATA 6Gb/s cables
      • 1 x Q-connector
      • 1 x M.2 Rubber Packages
      • 2 x Screw package for M.2 SSD
      • 1 x Screw package for M.2 Key E
      • 1 x I/O Shield
      • 1 x IPMI expansion card
      • 1 x BMC cable
      • 1 x Power On/Off cable
      • 1 x Reset cable
      • 1 x USB 2.0 cable
      • 1 x IPMI Expansion Card user guide
      • 1 x User guide
      • 1 x ACC Express Activation Key Card
    • Brand Compatibility
    • Intel
    • Environmental Compliance
    • Restriction of Hazardous Substances (RoHS)
