- General Information
- Manufacturer
- ASUS Computer International
- Manufacturer Website Address
- http://uk.asus.com
- Brand Name
- Asus
- Product Line
- Prime
- Marketing Information
PRIME
ASUS Prime series motherboards are expertly engineered to unleash the full potential of 14th, 13th& 12thGeneration Intel®processors. Boasting a robust power design, comprehensive cooling solutions and intelligent tuning options, Prime B660 provides users and PC DIY builders a range of performance tuning options via intuitive software and firmware features
FLEXIBILITY
Comprehensive controls form the foundation of the ASUS Prime series. The Prime B660 motherboard packs flexible tools to tune every aspect of your system, enabling performance tweaks to perfectly match the way you work to maximize productivity.
Intelligent Control | All-Around Energy Efficiency
The Energy Processing Unit (EPU) automatically optimizes power consumption and maximizes energy savings with Away mode - a smart setting that creates an extreme energy-saving scenario by shutting down unused I/O controllers.
UEFI BIOS
The renowned ASUS UEFI BIOS provides everything you need to configure, tweak and tune your system. It offers intelligently simplified options for PC DIY beginners, as well as comprehensive features for seasoned veterans.
Advanced Tuning for Serious Tweakers
An intuitive Advanced mode offered via the UEFI lets you take complete control. A built-in search feature makes it easy to find options, and various advanced functions let you intelligently make nuanced adjustments so you can dial in performance just the way you want.
- Product Type
- Gaming Desktop Motherboard
- Processor & Chipset
- Chipset Manufacturer
- Intel
- Chipset Model
- B660
- Total Processor Supported
- 1
- Processor Socket
- Socket LGA-1700
- Processor Generation Supported
- 14th Gen
- 13th Gen
- 12th Gen
- Processor Supported
- Celeron
- Core
- Pentium Gold
- Memory
- Number of Memory Slots
- 4
- Memory Form Factor
- DIMM
- UDIMM
- Maximum Memory Supported
- 128 GB
- Memory Technology
- DDR4 SDRAM
- Memory Speed Supported
- 5066 MHz
- 5000 MHz
- 4800 MHz
- 4600 MHz
- 4400 MHz
- 4266 MHz
- 4000 MHz
- 3866 MHz
- 3733 MHz
- 3600 MHz
- 3466 MHz
- 3400 MHz
- 3333 MHz
- 3000 MHz
- 2933 MHz
- 2800 MHz
- 2666 MHz
- 2400 MHz
- 2133 MHz
- Intel Optane Memory Ready
- Yes
- I/O Controller
- Controller Type
- Serial ATA/600
- RAID Supported
- Yes
- RAID Levels
- 0
- 1
- 5
- 10
- Video
- Onboard Video
- CPU Dependent Video
- Audio
- Audio Channels
- 7.1
- Network & Communication
- Gigabit Ethernet
- Yes
- 2.5Gigabit Ethernet
- Yes
- I/O Expansions
- Total Number of Expansion Slots
- 4
- PCI Express Standard
- PCI Express 4.0
- PCI Express 3.0
- Total Number of PCI Express Slots
- 4
- Number of PCI Express x1 Slots
- 2
- Number of PCI Express x16 Slots
- 2
- Interfaces/Ports
- Total Number of USB Ports
- 6
- Number of USB 3.2 Gen 1 Type-A Ports
- 1
- Number of USB 3.2 Gen 2 Type-A Ports
- 2
- VGA
- Yes
- HDMI
- Yes
- HDMI Version
2.1
- DisplayPort
- Yes
- Number of Network (RJ-45) Ports
- 1
- Thunderbolt
- Yes
- Onboard Interfaces
- Number of SATA Interfaces
- 4
- Number of M.2 Interfaces
- 3
- Total Number of Onboard USB Ports
- 7
- Number of Onboard USB 2.0 Ports
- 4
- Onboard S/PDIF Header
- Yes
- Physical Characteristics
- Form Factor
- ATX
- Width
- 305 mm
- Depth
- 244 mm
- Miscellaneous
- Package Contents

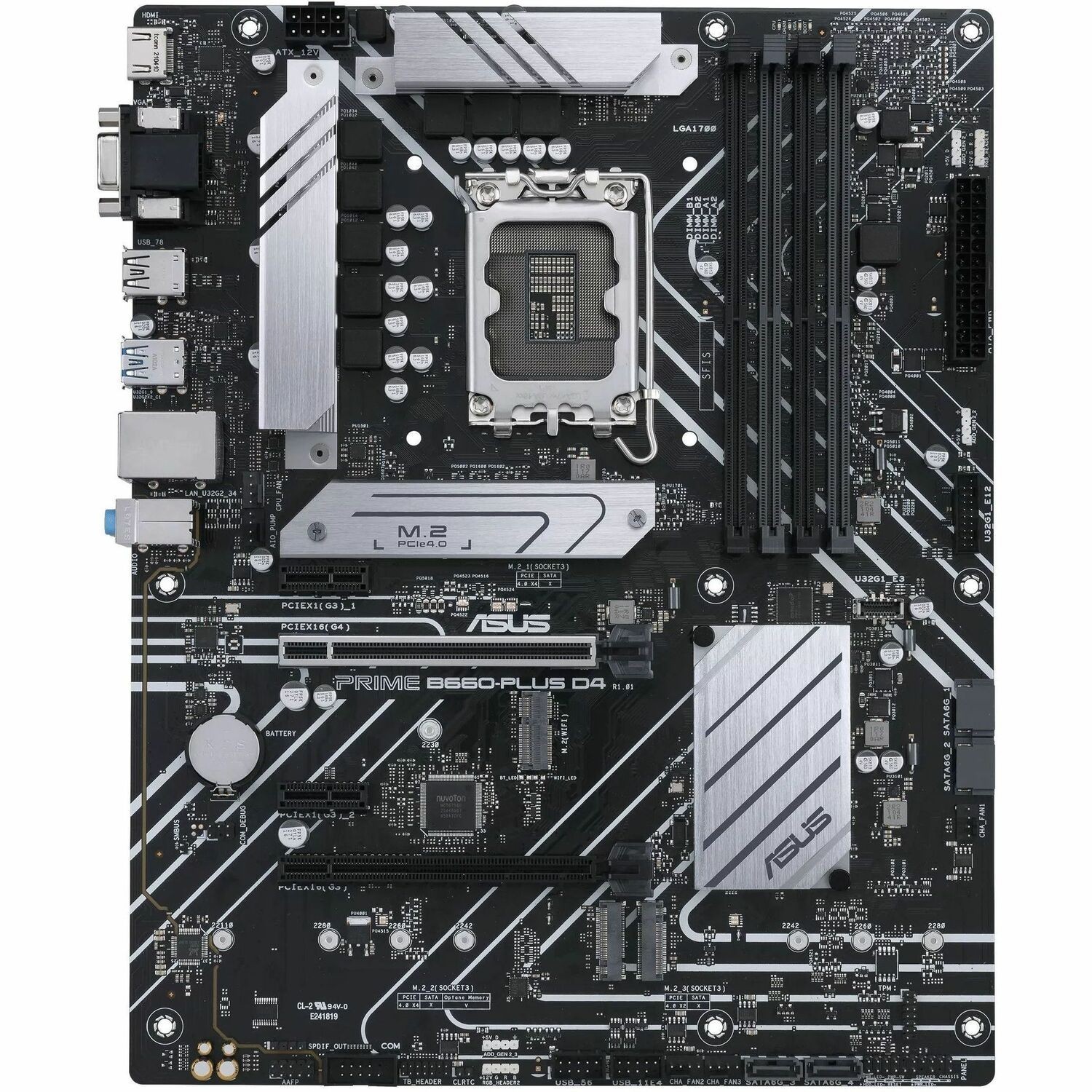

- PRIME B660-PLUS D4 Gaming Desktop Motherboard
- 2 x SATA 6Gb/s cables
- 1 x I/O Shield
- 1 x M.2 Rubber Package
- 2 x M.2 SSD screw packages
- 1 x M.2 Key E screw package
- 1 x Support DVD
- 1 x User guide
- Brand Compatibility
- Intel
- Environmental Compliance
- Restriction of Hazardous Substances (RoHS)
